AviationTire Performance - Aeroplanes Performance Class B - Multi Engine Use of performance graphs and tabulated data Q 2 / 5

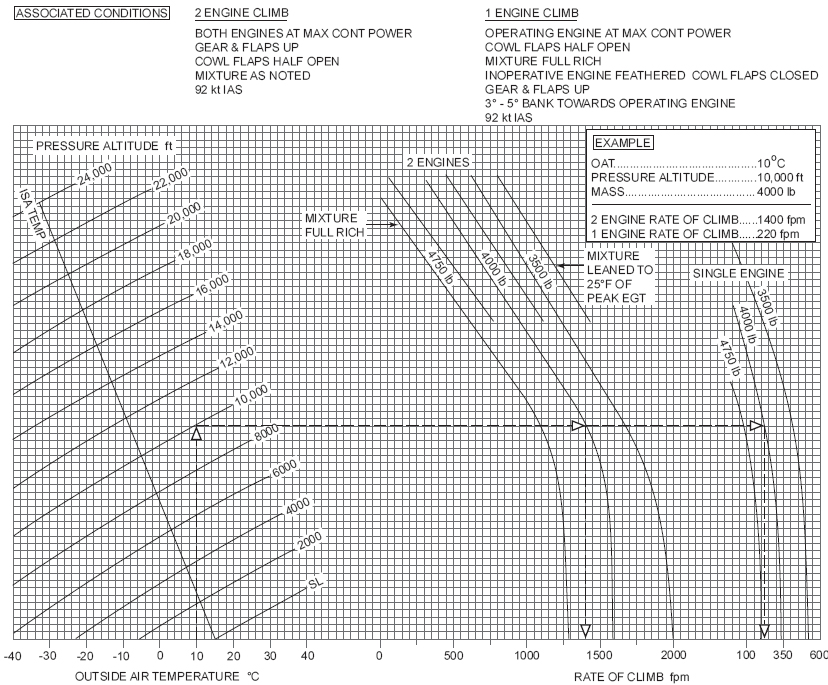

(Refer to CAP698 figure 3.7)
Given:
Pressure Altitude: 4000 ft
Temperature: ISA +17° C
Take-off mass: 4000 lbs

Determine the rate of climb with both engines operating:

View figure

325 ft/min
1350 ft/min
1550 ft/min
1900 ft/min
