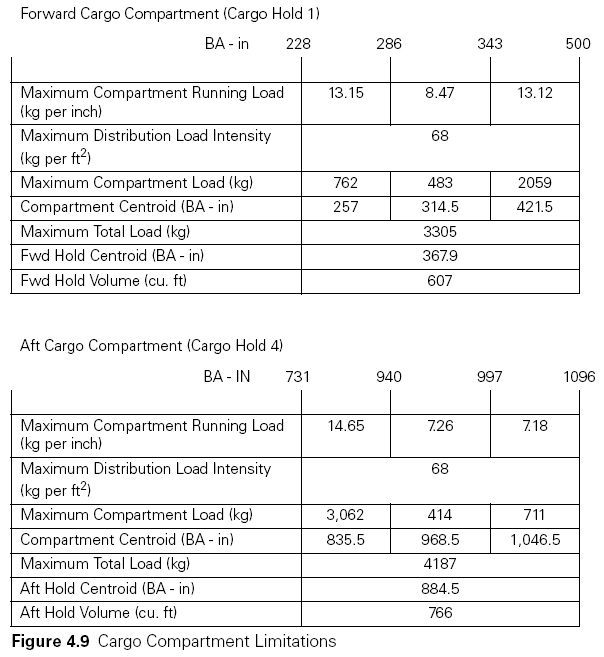

(Refer to CAP696 figure 4-9)
What is the maximum and minimum distribution load intensity for a box of mass 500 kg and dimensions of 1 m x 1.2m x 1.2m?

View figure

50.5 kg/sq ft and 40.6 kg/sq ft
47.3 kg/sq ft and 37.7 kg/sq ft
45.1 kg/sq ft and 35.8 kg/sq ft
38.7 kg/sq ft and 32.3 kg/sq ft
