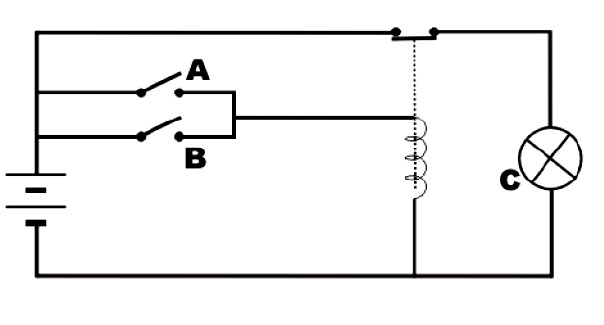

What logic function is achieved by the following circuit, where A and B are the inputs and C is the output?

View figure

XNOR
AND
NAND
NOR
